Strong Solid Derlin V Wheel Kit For Openbuilds V-Slot Rail
The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to it's solid nature.
This wheel style was produced for two reasons.
- First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
- Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.
Each wheel is carefully milled for consistent high precision and tolerance.

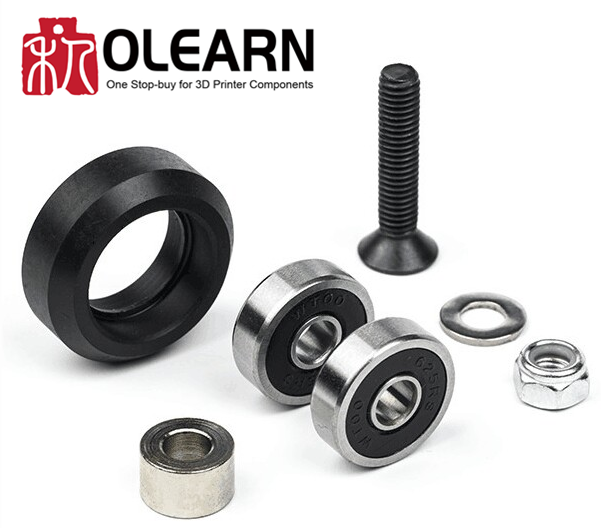

Each Wheel Kit Includes:
KITS 1：
(1) OpenBuilds Solid V Wheel
(2) Ball Bearings - 625 2RS
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert
(1)6MM Aluminum spacer
(1)M5*25 Low profile screw
KITS 2：
(1) OpenBuilds Solid V Wheel
(2) Ball Bearings - 625 2RS
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert
(1)6MM Eccentric spacer
(1)M5*25 Low profile screw
Part Details
Material - Delrin (black)
Dimensions 23.90 OD x 16 ID x 10.23 'thick'
Rockwell Hardness M80
Compressive Strengh 63Mpa
