CNC Clear Polycarbonate Xtreme Solid V Wheel Kits
There are two different kits for this model, please note before place the order.
The OpenBuilds Solid V Xtreme Wheel is part of the heavy duty Xtreme line of OpenBuilds parts, designed with strength in mind.
These solid Xtreme V's are made from very hard polycarbonate (clear) material which, due to its strong nature, will resist compression and wear and, in turn, leads to better overall precision and strength for your builds.
The Xtreme V wheels are designed to be used as a heavy duty alternative to the Delrin V Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system. So, while the Delrin V Wheels work great for most light load applications the OpenBuilds Solid V Xtreme wheels can be used for builds where heavier loads are required and less compression than the delrin is desired.
The OpenBuilds Team has tested these wheels at 25lbs. per wheel with no noticeable deflection. Beta testing resulted in unofficial results of 55lbs. per wheel!
Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
Each wheel is carefully milled for consistent high precision and tolerance.

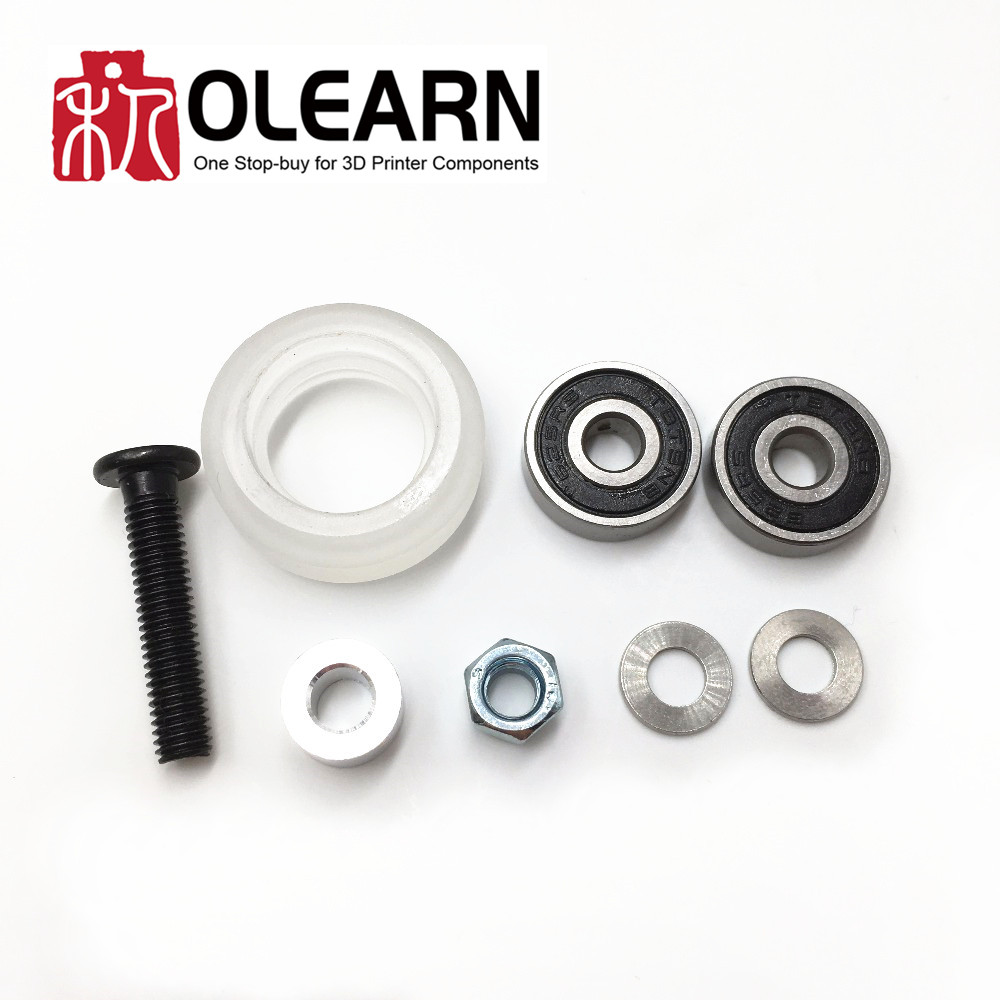

Each Wheel Kit Includes:
KITS 1：
(1) OpenBuilds Solid Xtreme V Wheel
(2) Ball Bearings - 625zz
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert
(1) 6MM Aluminum spacer
(1) M5*25 Low profile screw
KITS 2：
(1) OpenBuilds Solid Xtreme V Wheel
(2) Ball Bearings - 625zz
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert
(1) 6MM Eccentric spacer
(1) M5*25 Low profile screw
