Details

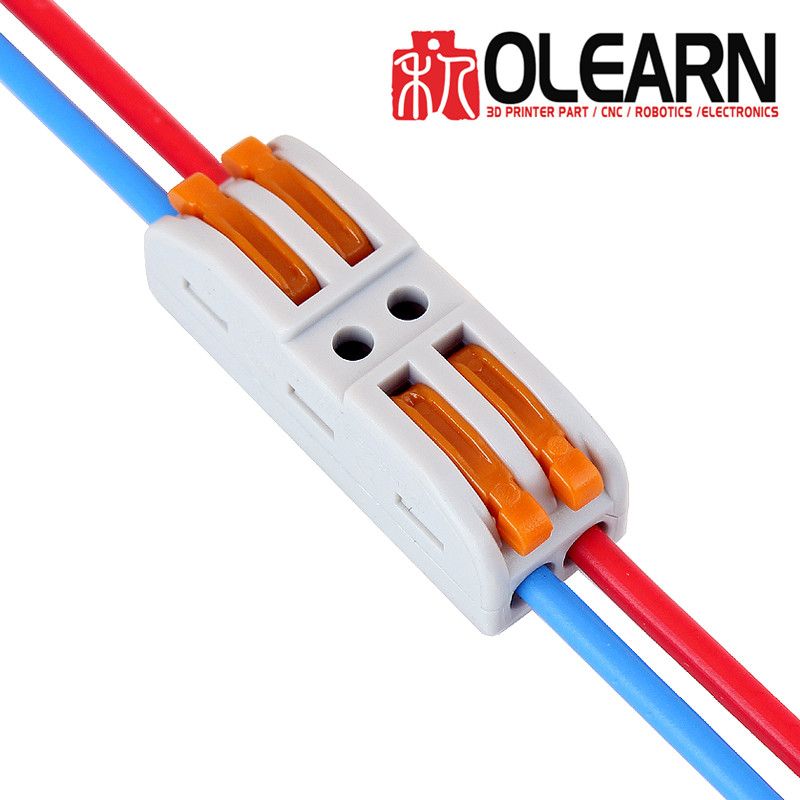

Olearn Lever Nuts For CR-10 Anet A8 Hotend Thermistor Applications
Basic Information
Model : SPL-2
Rated Voltage : 400V
Rated Impulse Voltage : 4KV
Description:
Product Name: 2 pole
Universal wire connector
Material of Insulation:modified nylon(PA66)
Contact material:phosphor copper
Wire Cross section:0.08~4.0mm2(single hard wire), 0.08~4.0mm2(multi soft wire)
Color:Grey+Orange
Rated Current:32A
Rated power: 7KW
Gauge:28~12AWG
Strip length: 9 - 10mm
About Olearn Lever Nuts
Original Wago lever nuts are first available as samples before you could even buy them through distributors back in about 2005. And while revolutionary they only had 3 version, 2, 3, and 5 hole versions. If you had multiple different wires to splice you needed multiple lever nuts. This can become bulky especially in an inline splicing application. Even though they have introduced a newer design and even a larger version that will handle up to 10 AWG (6MM Sqd), They still only make the 2, 3 and 5 hole versions in each of their lever nut series.
Olearn source lever nut is amazing to you that not only have the originals been counterfeited they have been "improved". The 2 and 3 circuit inline splices are exactly what you have wanted and dreamed of from Wago. Over all fit, finish and appearance is good, the levers feel a bit more delicate compared to the original. They may not last as many installation and removal cycle. The springs seem powerful enough, they snap closed with enough force to hurt just like the originals
Note: Great for low voltage use with caution at higher voltage.
