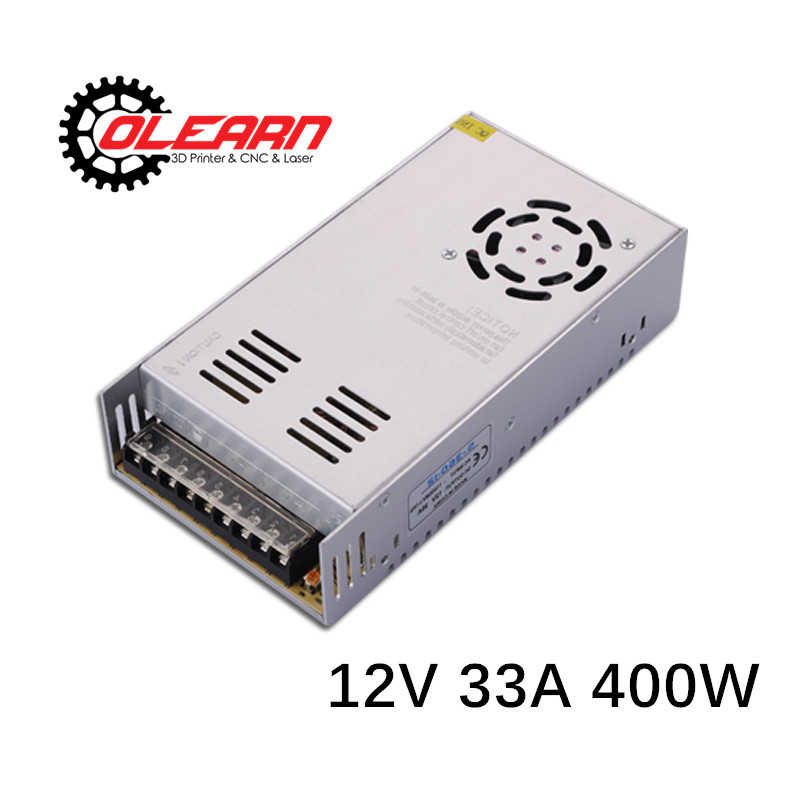

12V 400W Power Supply 33A For CCTV Camera 3D Printer LED Lighting
The power supply is widely used in Industrial automation, LED display, communications, etc. It comes with built-in WMI filter, anti-jamming performance. DC ripple is small, high efficiency. Designing with soft-start circuit, AC surge current limit.
Though this power supply have some protection function itself, it's still aimed at experienced users, if you are not comfortable wiring in your own mains then please consider an alternative supply. All terminals must be insulated to avoid short-circuit and risk of electrocution to anyone that may be exposed to your printer. Please play safe!
Specifications:
1. Shell Material: Metal case / Aluminum base
2. Protection: Shortage Protection, Overload Protection, Over Voltage Protection
3. Safety Compliance: CE Approved
4. Voltage Input: AC110V or 220V
5. Output Voltage: DC12V,33A
6. Rated power: 400W(396w)
7. Working Temperature: -10~50℃
Note:
1) metal shell power wire and the shell is generally connected with the ground (FG), with a reliable grounding to ensure safety, not mistakenly connected to the shell on the neutral wire.
2) Before commissioning, please check and verify the wiring on the terminals again to ensure that the input and output, AC and DC, single-phase and multi-phase, positive and negative voltage and current values, Before running.
3) For a high-power power supply, generally have three or more than three "+" input terminals and "-" output terminals, in fact, they belong to an output polarity
