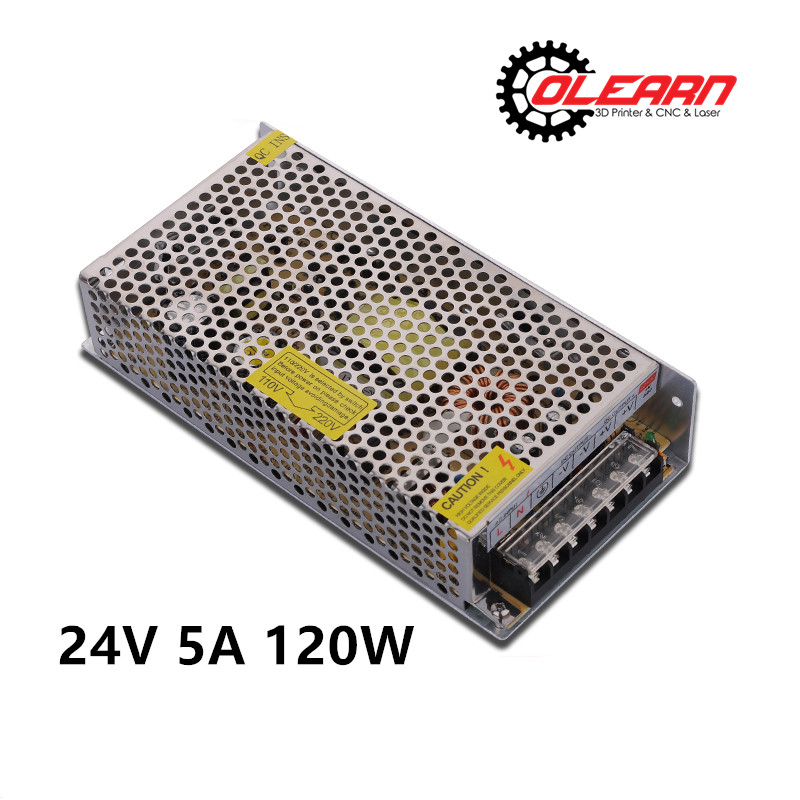

24V 120W Power Supply 5A For LED Lighting CCTV Camera

More Views

24V 120W Power Supply 5A For LED Lighting CCTV Camera
$5.42

Availability: In stock

EXW Price

24V 5A power supply, 120W. The best place to start when looking for a 3D printer power supply is to choose an output voltage. The two most common choices are 12 and 24 volts. The most important factor when choosing voltages is your hot end. SKU:B184
Description

Details


24V 120W Power Supply 5A For LED Lighting CCTV Camera


The power supply is widely used in Industrial automation, LED display, communications, etc.  It comes with built-in WMI filter, anti-jamming performance. DC ripple is small, high efficiency. Designing with soft-start circuit, AC surge current limit.
Though this power supply have some protection function itself, it's still aimed at experienced users, if you are not comfortable wiring in your own mains then please consider an alternative supply. All terminals must be insulated to avoid short-circuit and risk of electrocution to anyone that may be exposed to your printer. Please play safe!

Specifications:
1. Shell Material: Metal case / Aluminum base
2. Protection: Shortage Protection, Overload Protection, Over Voltage Protection
3. Safety Compliance: CE Approved
4. Voltage Input: AC110V or 220V
5. Output Voltage: DC24V,5A
6. Rated power: 120W
7. Working Temperature: -10~50℃

Note:
1) metal shell power wire and the shell is generally connected with the ground (FG), with a reliable grounding to ensure safety, not mistakenly connected to the shell on the neutral wire.
2) Before commissioning, please check and verify the wiring on the terminals again to ensure that the input and output, AC and DC, single-phase and multi-phase, positive and negative voltage and current values, Before running.
3) For a high-power power supply, generally have three or more than three "+" input terminals and "-" output terminals, in fact, they belong to an output polarity
