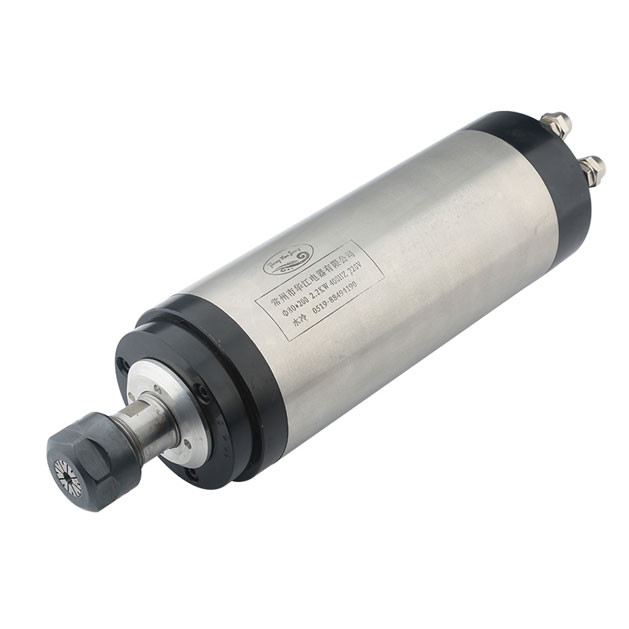

2.2kw Φ85 ER20 Water Cooled Spindle Motor For Woodworking Machine

2.2kw  Φ85 ER20 Water Cooled Spindle Motor For Woodworking Machine

Descriptions:

model: 85 2.2KW ER20
Dimensions: Φ85*230Φm/m
Rotating speed: 24000RPM
power: 2.2KW
Voltage: 220V/380V
frequency: 400HZ
Bearing: Four bearings
cooling method: Water cooling
Chuck nut: ER20
Current: 8.5A
Weight: 7kg

Features :

• Huajiang 2.2kw (φ85*230 ) water-cooled spindle motor for woodworking advertisements should be used with the inverter. The specifications and parameters of the inverter should match the parameters of the spindle motor. If the settings are incorrect, the spindle motor will be burned.
• Before using, the water-cooled spindle motor must ensure that the cooling circulation system is working normally, and it is strictly prohibited to use it without cooling water.
• During the storage and transportation of the spindle motor, the state of the high-speed grease inside the bearing will change, and the customer should run the spindle at a low speed before use.
