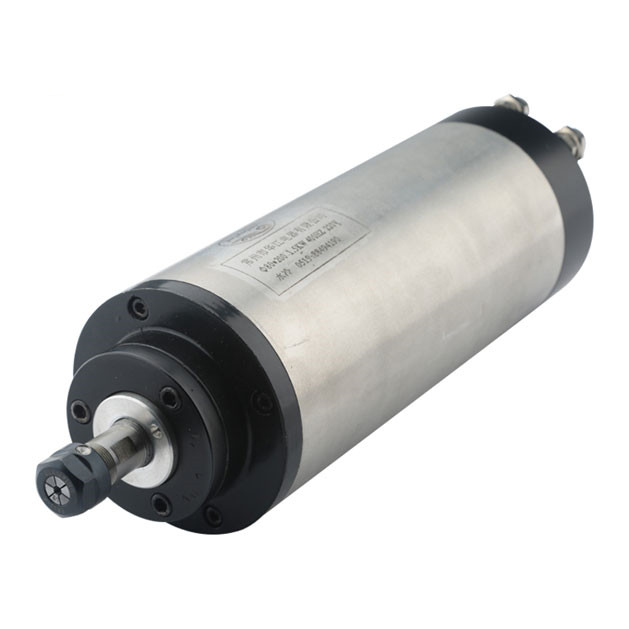

1.5kw Φ80 ER11 Water Cooled Spindle Motor For Engraving Machine

1.5kw Φ80 ER11 Water Cooled Spindle Motor For Engraving Machine

Descriptions:

model: 80 1.5KW ER11
Dimensions: Φ80*200Φm/m
Rotating speed: 24000RPM
power: 1.5KW
Voltage: 220V/380V
frequency: 400HZ
Bearing: Four bearings
cooling method: Water cooling
Chuck nut: ER11
Current: 8A
Weight: 4.5kg

Features :

• Huajiang 1.5kw (φ80*200 ) water-cooled spindle motor for woodworking advertisements should be used with the inverter. The specifications and parameters of the inverter should match the parameters of the spindle motor. If the settings are incorrect, the spindle motor will be burned.
• Before using, the water-cooled spindle motor must ensure that the cooling circulation system is working normally, and it is strictly prohibited to use it without cooling water.
• During the storage and transportation of the spindle motor, the state of the high-speed grease inside the bearing will change, and the customer should run the spindle at a low speed before use.
