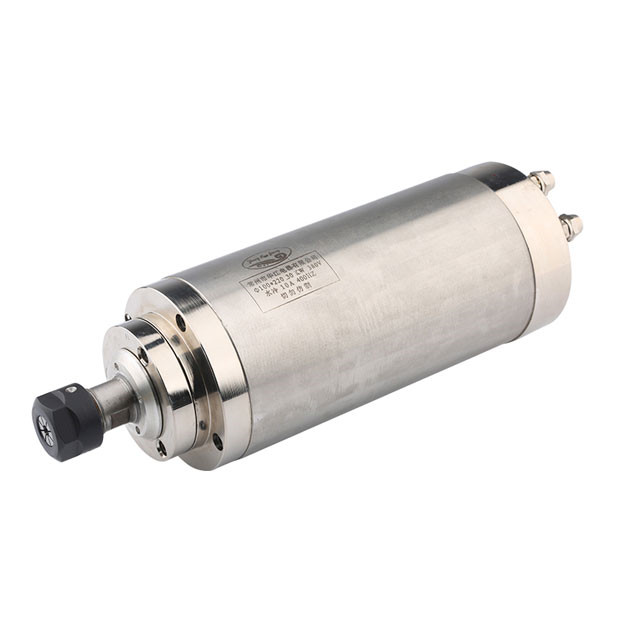

3.0kw Φ100 ER20 Water Cooled Spindle Motor For Engraving Machine

3.0kw Φ100 ER20 Water Cooled Spindle Motor For Engraving Machine

Descriptions:

model: 100 3.0KW ER20
Dimensions: Φ100*220m/m
Rotating speed: 24000RPM
power: 3.0KW
Voltage: 220V/380V
frequency: 400HZ
Bearing: Four bearings
cooling method: Water cooling
Chuck nut: ER20
Current: 10A
Weight: 8.8kg

Features :

• Huajiang 3.0kw (φ100*220 ) water-cooled spindle motor for woodworking advertisements should be used with the inverter. The specifications and parameters of the inverter should match the parameters of the spindle motor. If the settings are incorrect, the spindle motor will be burned.
• Before using, the water-cooled spindle motor must ensure that the cooling circulation system is working normally, and it is strictly prohibited to use it without cooling water.
• During the storage and transportation of the spindle motor, the state of the high-speed grease inside the bearing will change, and the customer should run the spindle at a low speed before use.
