MR85ZZ Deep Groove Ball Bearing

More Views

1 2 3

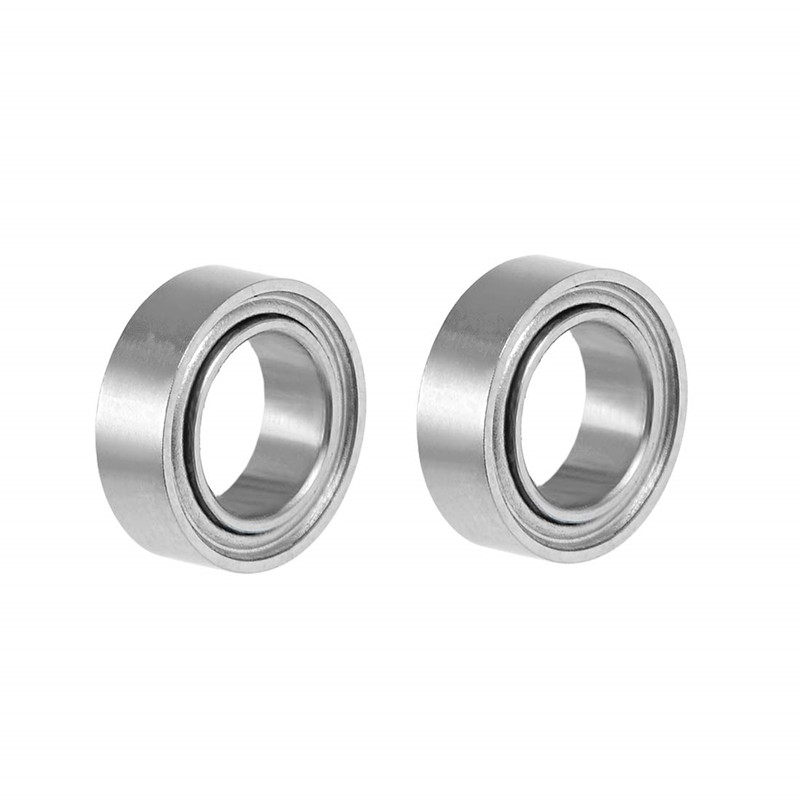

MR85ZZ Deep Groove Ball Bearing
$0.17

Availability: In stock

EXW Price

This is MR85ZZ Deep Groove Ball Bearing, can be used as a replacement for Bondtech extruder. OLEARN SKU: H661
Description

Details


OLEARN MR85ZZ Deep Groove Ball Bearing


Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.


-MR85ZZ (I.D.=5mm, O.D.=8mm, Thickness=2.5mm)

-MR85z bearings are shielded on BOTH SIDES to keep lubricant in

-Chromium Steel long-life bearings, smooth and low noise

-ABEC Tolerance 3 (P6), Z1 Noise Level for most general use

-Static load rating of 90 newtons and dynamic load rating of 218 newtons


Specification:

Model: MR85ZZ
Shield Type: Double Shielded
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel
Inner Diameter (d): 5mm
Outer Diameter (D): 8mm
Thickness (B): 2.5mm
Dynamic Load Rating (Cr): 0.218kN
Static Load Rating (Cor): 0.09kN
Accuracy Class: P6 (ABEC-3)
Noise Level: Z1
