Olearn 6 Pin DT04-6P DT06-6S Waterproof Electrical Connectoror For 3D Printer PSU

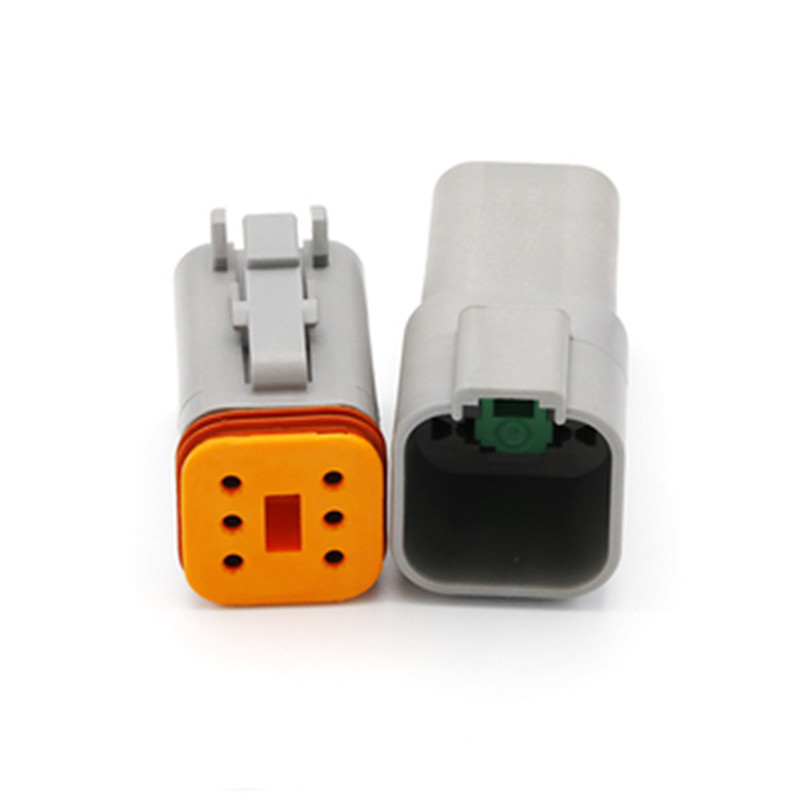

This is a complete ruggedized DT04 plug and DT06 socket combo kit, used in 3D printer, automotive and industrial applications, IP67 rated.
Specifications
Connections: 6 - per plug/socket pair
Wire Gauge: 14 - 18+ AWG
Current Rating: 13 A - per pin
Housing Material: Thermoplastic
Gasket and Insulating Material: Silicone
IP Rating: IP67
Insulation: 1000 MOhm
Dialectric Rating: <2 mA at 1500 VAC
Operating Temperature: -55 to 125 deg C
Mating Cycles: 100 - minimum
Included:
1x DT04-6P Plug (includes gaskets, wedgelock, rubber backshell plugs)
1x DT06-6S Socket (includes gaskets, wedgelock, rubber backshell plugs)
6x Male Pins
6x Female Socket Pins
A brilliant application for PSU from Ray Juntanamalaga: Extended power lines with 14 AWG silicone wires and used a DT06-6P for a quick connector for the PSU
