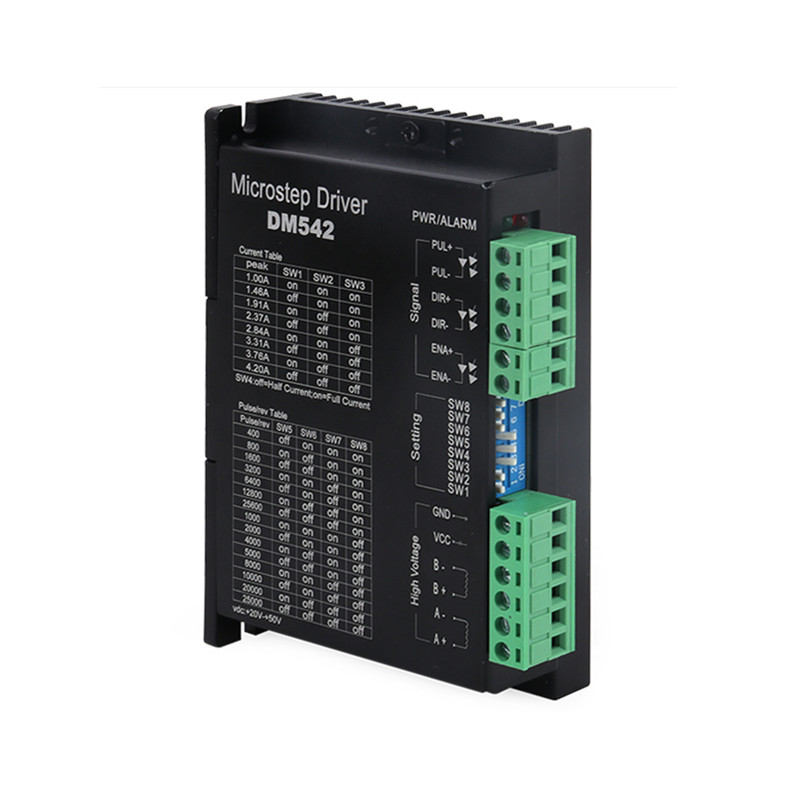

Stepper Motor DM542 Controller

More Views

Stepper Motor DM542 Controller

Availability: In stock

EXW Price

Stepper Motor DM542 Controller. OLEARN SKU: B225


OLEARN Stepper Motor DM542 Controller Leadshine 2-phase Digital Stepper Motor Driver 18-48 VDC Max 4.1A 57 86 Series Motor Driver W315

DSP Digital 57 86 Stepper Motor Driver DM542 128 Subdivision Replacement M542/2M542


Package include:
1pcs x DM542 stepper motor driver


Product Specifications:
Power supply:  DC 24-60 (V)
Current maximum:  4.5A
Output phase current:  1.5A-4.5A
Logic input current:  10-20mA
Operating temperature:  -15℃—+45℃
Size:  11.7*8.5cm/4.61*3.35inch



Drive integrated overvoltage and overcurrent protection
Input signal light isolation
Bipolar constant current chopping method
DC power supply 20-50VDC (24-48VDC recommended)
Maximum drive current 4.2A
Output current dial switch is adjustable
Low speed zero vibration, and low noise
High subdivision: 2,4,8,16,32,64,128,5,10,20,25,40,50,100,125
High anti-interference ability, high precision positioning in the harsh environment of the power grid
High reliability: Power devices leave enough margin and are rigorously tested at the factory

Drive 57 series and <=4NM 86 motors! Working voltage <= 50VDC.

       DM542 is a professional digital two-phase hybrid stepping motor driver, which is suitable for various brands at home and abroad. The 4-phase, 6-wire and 8-wire two-phase hybrid stepping with an outer diameter of 4.2A and below is 57-86mm. Motor. Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, pick and place device. It works especially well in devices where users expect low-cost, low-noise, low- and medium-speed operation.
