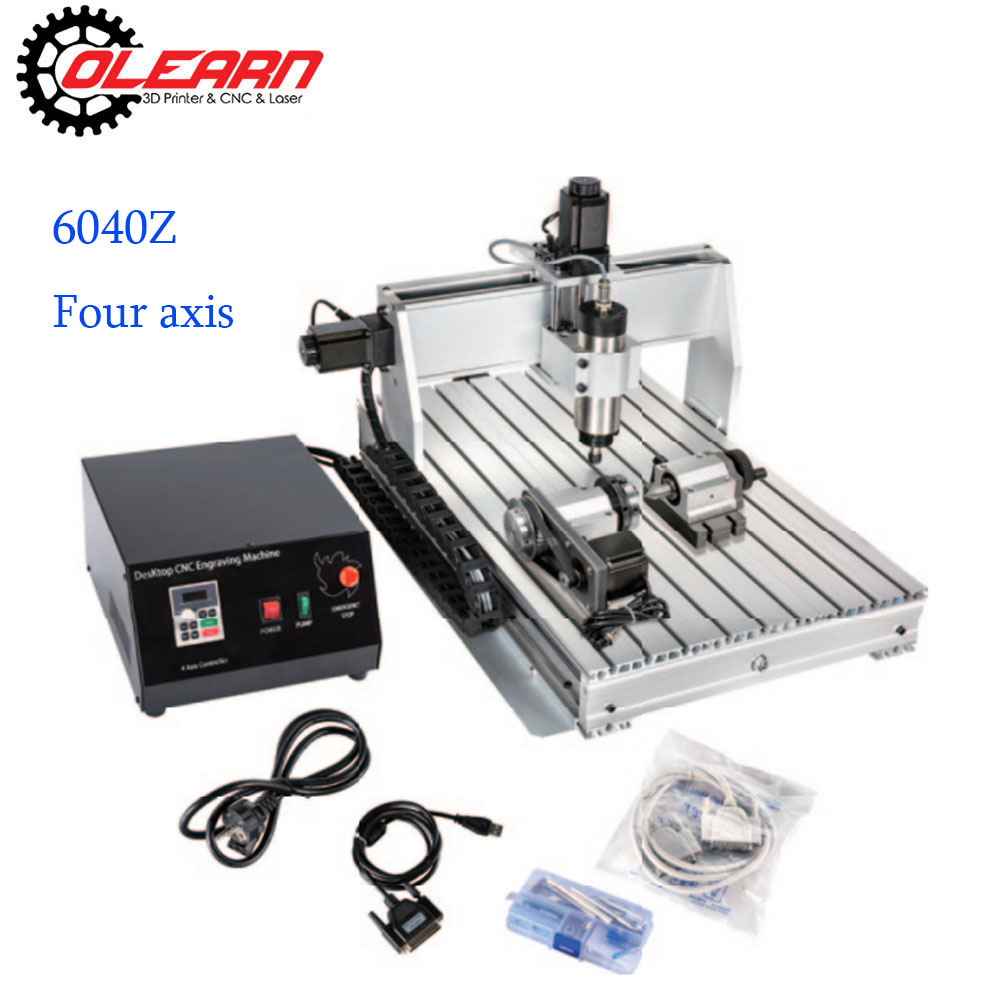

Specification
Machinable material thickness:≤100mm
Outline dimension:750*570*390mm
Frame material: 6061-T5 aluminium alloy
Rail Type:Chrome plated shaft+linear bearing
Screw type:diameter 16mm, Thread pitch 5mm, Ball screw
Mechnical resolution: XYZ-shaft 0.0025mm/step
Positioning accuracy:0.05mm
Spindle motor: Frequency Conversion spindle motor,0.8KW
RPM:24000rpm/min
Chuck type:ER11(3.175MM,6MM)
XYZ Motor:Stepper motor JK57HS76-4204B-01AF
Stepper drive:High performaance,integrated drive
Free rate:24000mm/min
Communication interface: USB2.0/25 Needle parallel
System requirement:WIN-XP or WIN-7
Order code:G code/.nc/.ncc/.tab/.txt
Voltage:Input 85V-240VAC(400HZ)
Operation environment: temp 5°C~40°C,Humidity:35%-80%

Weight:46KG
