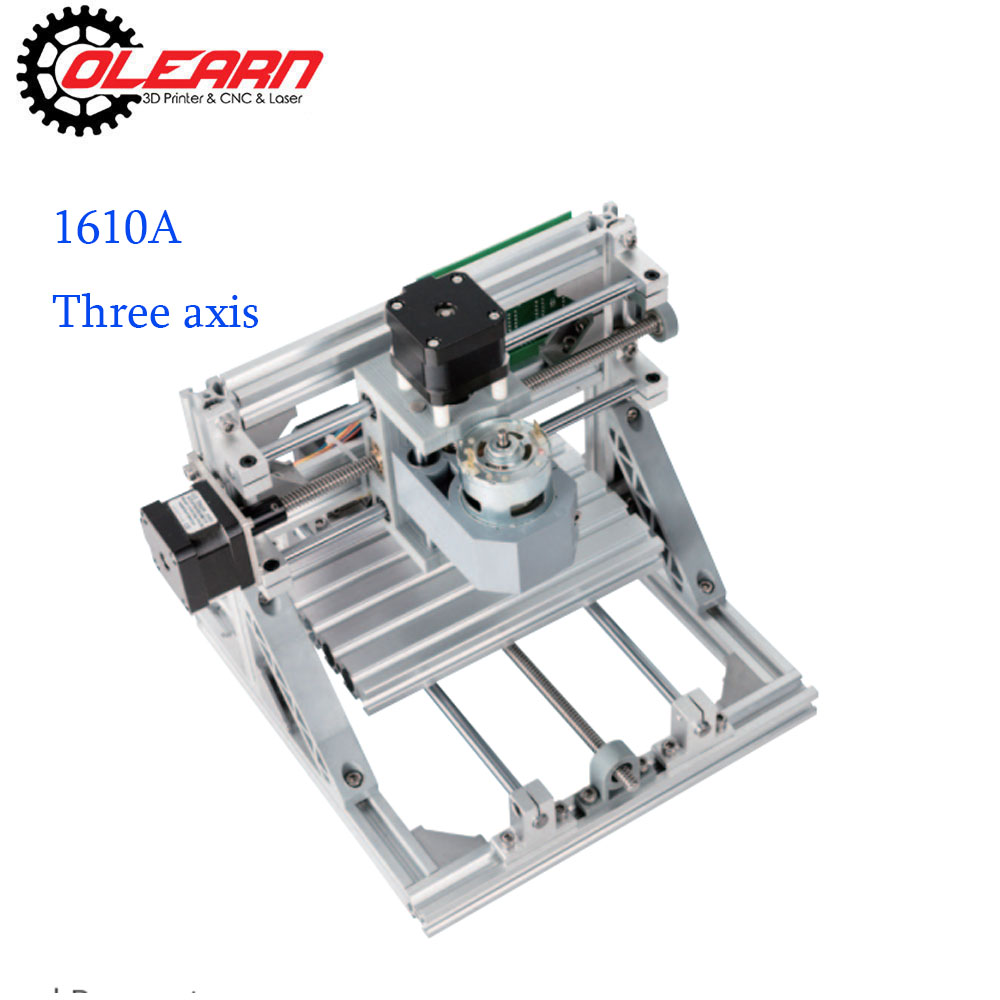

Olearn CNC Router Machine 1610A Three Aixs Engraver Machine

Specification
Machinable material thickness:≤40mm
Outline dimension:260*240*220mm
Frame material: 6061-T5 aluminium alloy
Rail Type:Chrome plated shaft+linear bearing
Screw type: Diameter 8mm,Thread pitch 4mm,Stainless steel ttype screw
Mechnical resolution: XYZ-shaft 0.0025mm/step
Positioning accuracy:0.1mm
Spindle motor: 25W DC
RPM:10000rpm/min
Chuck type:Copper connector,Directly assemble cutter 3.175mm
XYZ Motor:Stepper motor 42HB-03401Z-001
Stepper drive:High performaance,integrated drive
Free rate:1500mm/min
Communication interface: USB2.0
System requirement:WIN-XP or WIN-7
Order code:G code/.nc/.ncc/.tab/.txt
Voltage:Input 85V-240VAC(400HZ)
Operation environment: temp 5°C~40°C,Humidity:35%-80%

Weight:5KG
