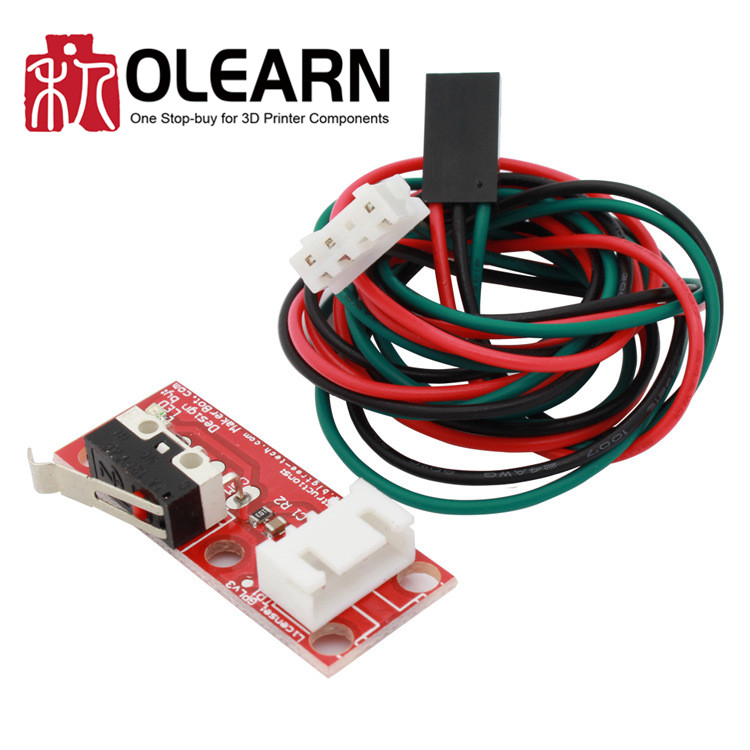

Endstop Mechanical Limit Switch For 3D Printer
Package List: ( Tested and it is working great )
1 X Endstop Switch (male-female)1X 3pins 70cm cable
Features and Advantages
Endstop Mechanical Limit Switch
1) High quality switch
2) The model of wire is 22 Awg, high quality with copper wire inside is very bigger than other, is suit to 2a current, voltage 300 v. Temperature range of insulating layer is very wide, the highest temperature is 80 degrees. The other wires easily broken when 3D printer works .our products is convenient to use because the suitable plugs are fixed on the both side of wires , you can directly plug the wires into the connectors on the ramps 1.4.Instruction for connecting
1) Red wire links to VCC (ramps +)
2) Black wire links to GND (ramps -)
3) Green wire links to SIGNAL(ramps s)
Tips:
in generally,the RAMPS 1.4 3D printer requires three mechanical switches.
Advantage : easy to install, the more common styles.
Weakness: short life , mechanical parts easy to loss.
